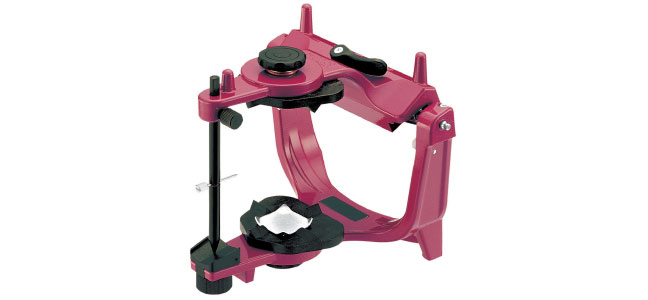

Spacy Articulator Arcon
*Removable upper member facilitates wax-ups.
*Wide space on the lower jaw frame provides excellent workability.
*Falling down preventing design when upper jaw is opened.
*Balance keeping with three projections when it is set upside down.
*Place for name & number marking is available on the frame.
Red
Specifications
*Distance between Upper and Lower Frames/ 100mm
*Intercondylar width/ 110mm
*Sagittal condylar path inclination/ 25°
*Bennett angle/ 15°
*Balkwill angle/ 20°
*Angle of incisal path
/ Sagittally 10°
/ Laterally 10°
Accessories
*Mounting Ring 2 ea.
*Split Cast Retention Disk 10 ea.
*Non-Autoclavable
| Description | Code No. |
|---|---|
| Red | 19726 |
